OMMELIFT 2300 EX

  • Working Height: 74'1"
  • Outreach: 41'7"
  • Width: 66"
  • Weight:6,945 lbs
Home Products OMMELIFT 2300 EX | Tracked Lifts

Product Overview

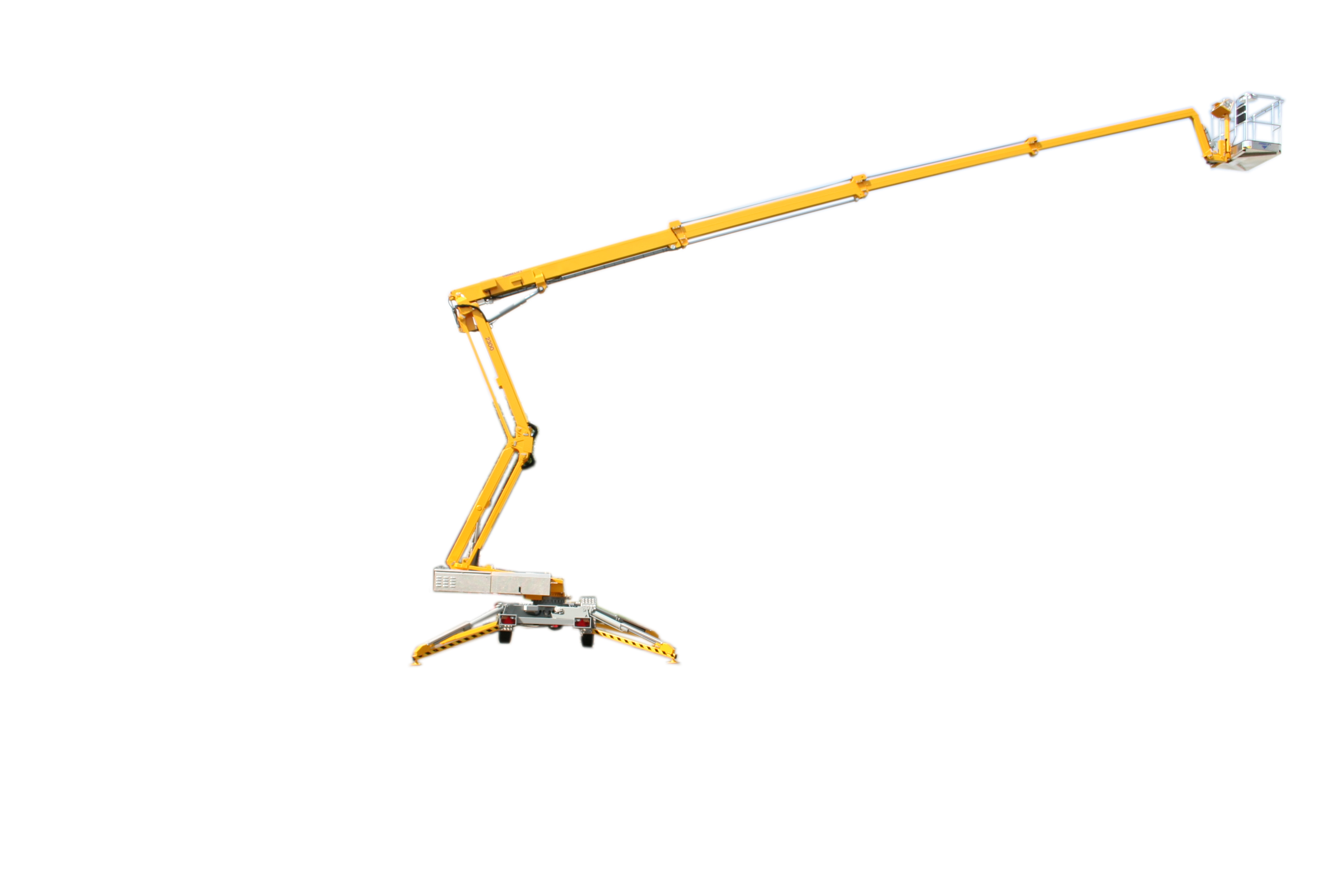

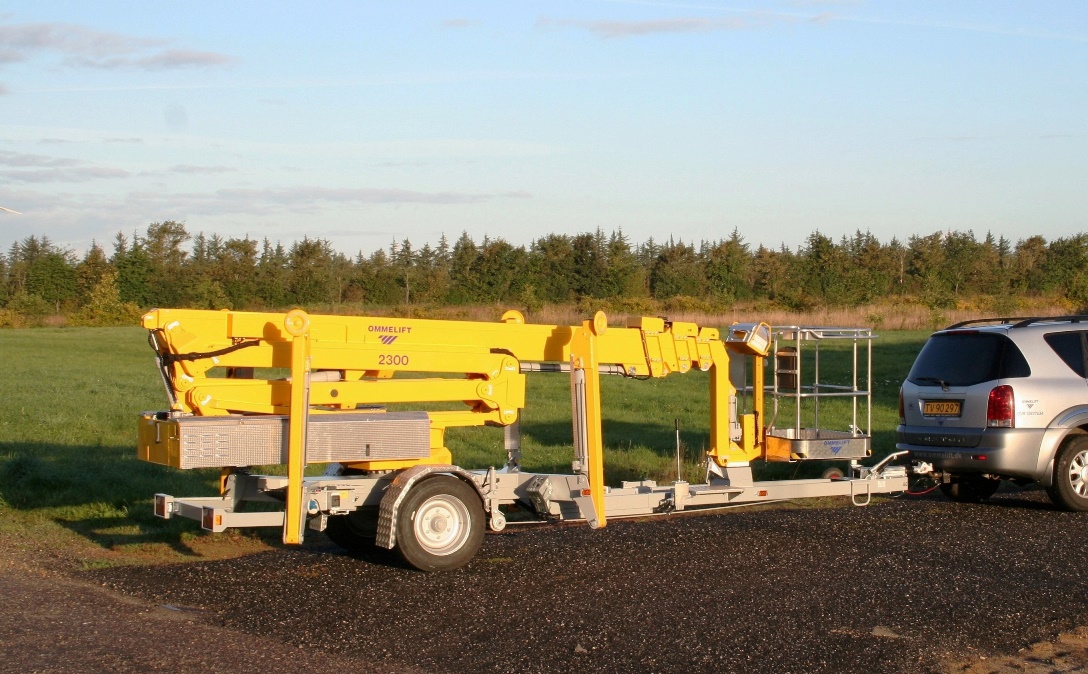

The Tracked Lifts OMME 2300 EX is a trailer-mounted lift with hydraulic propulsion, turnable basket and hydraulic stabilizers. When equipped with hydraulic propulsion the platform can propel itself around the worksite. The OMME 2300 EX is equipped with an unfolding scissor system, giving the lift an increased up and over outreach over high obstacles. When operating the scissor system up and down the basket will follow a vertical line. Similarly, the lift has no tail swing at rotation. Electric wiring to the basket is protected inside the telescopic boom. The telescopic cylinder is protected under the boom.

The OMME 2300 EX is fitted with straightforward control in the basket and at ground level. The hydraulic levers for the stabilizers are placed centrally on the chassis. The proportional controls ensure steady and smooth movements. This lift is powered by an electric motor, connected to 230V mains, and is especially suitable where continuous operation is required.



HubSpot Video



Features

  • Trailer Mounted Lift
  • Self Drive Capability
  • Hydraulic Engagement of Traction Rollers
  • Heavy Duty Front Wheel
  • Up and Over Boom Angle
  • Flush Basket Mount
  • Safety indicators
  • Telescopic Sections on Rollers
  • Large and Grease Free Steel Boom Sections
  • Telescopic Boom Cylinder Situated Underneath Main Boom
  • Power Outlet in Basket
  • Tool Trays in Basket
  • Hatch for easy cleaning



Specifications
Brochure

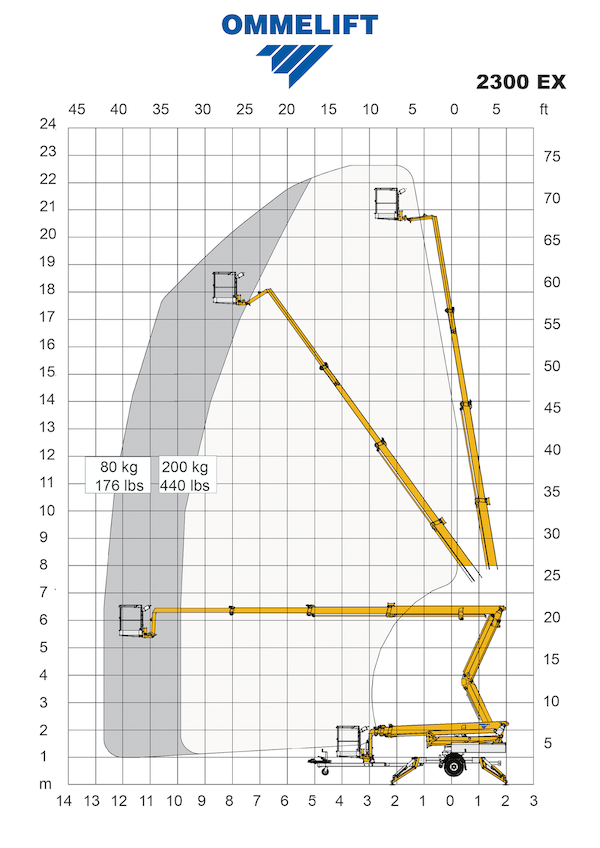

Chart
Specifications
Specifications

Max. working height
74'1"
Max. outreach
41'7" (at 176lbs)
Max. basket load
440 lbs
Basket size
4’1” x 2’6” x 3’8” (2-man basket)
Basket rotation
+ / - 41°
Turret rotation
+ / - 355°
Traveling length
24'
Traveling height
6'6"
Traveling width
5'6"
Operational width
Outrigger spread - 13’9” x 13’9”
Battery
24V/200Ah/5h
Charger
24V / 25A
Diesel engine
Gasoline Engine Available as Add-On
Total weight
6,945 lbs
Deployment ability on slopes up to
14% (8°)
