Tracked Lifts 313

LIFTING HEIGHT

13'1"

RATED CAPACITY

3,500 lbs

OVERALL WIDTH

58"

OPERATING WEIGHT

7,910 lbs

The Tracked Lifts 313 is a compact telehandler built for job sites where space is limited but performance isn't. At just 58" wide with a 3,500-lb rated capacity, it handles material placement, equipment staging, and ground support work that full-size machines can't access.

Tracked Lifts _ Newsletter Motion Graphic (2)

Tracked Lifts 313

LIFTING HEIGHT

13'1"

RATED CAPACITY

3,500 lbs

OVERALL WIDTH

58"

OPERATING WEIGHT

7,910 lbs

The Tracked Lifts 313 is a compact telehandler built for job sites where space is limited but performance isn't. At just 58" wide with a 3,500-lb rated capacity, it handles material placement, equipment staging, and ground support work that full-size machines can't access.

Overview

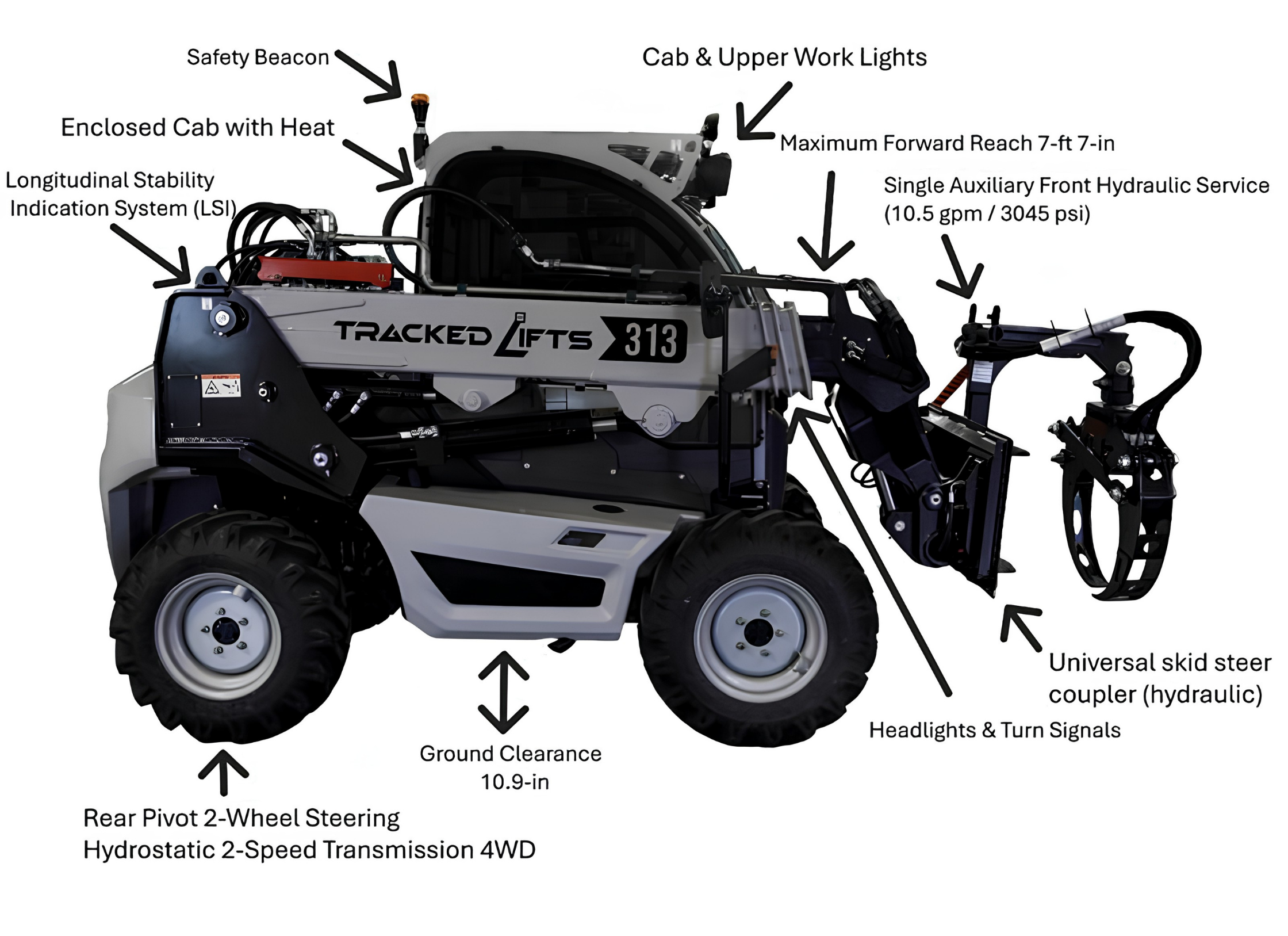

The Tracked Lifts 313 compact telehandler delivers serious material handling capability in a machine that goes where full-size equipment can't. With a maximum lifting height of 13'1" and a rated load capacity of 3,500 lbs, the 313 handles the heavy lifting on confined construction sites, residential tree care jobs, and any site where access is tight and demands aren't.

At just 58" wide and powered by a 24.8-HP Kubota diesel engine, the 313 works as hard as the crews that operate it. The hydrostatic 2-speed 4WD transmission delivers smooth, responsive power across uneven terrain, and a top travel speed of 12.4 mph means you're repositioning fast, not waiting around. With 10.9" of ground clearance and a turning radius of 134" over tires, this machine tackles the terrain and the site conditions that challenge lesser equipment.

The 313 is operated via single joystick proportional controls, providing the precision needed for tight, accurate placement. Standard seatbelt engagement and operator presence systems are built in. Whether you're staging framing packages on a commercial build, positioning a chipper on a residential tree job, or picking and placing material in a space a full-size telehandler won't fit, the 313 is the machine that solves the problem.

REQUEST A QUOTE

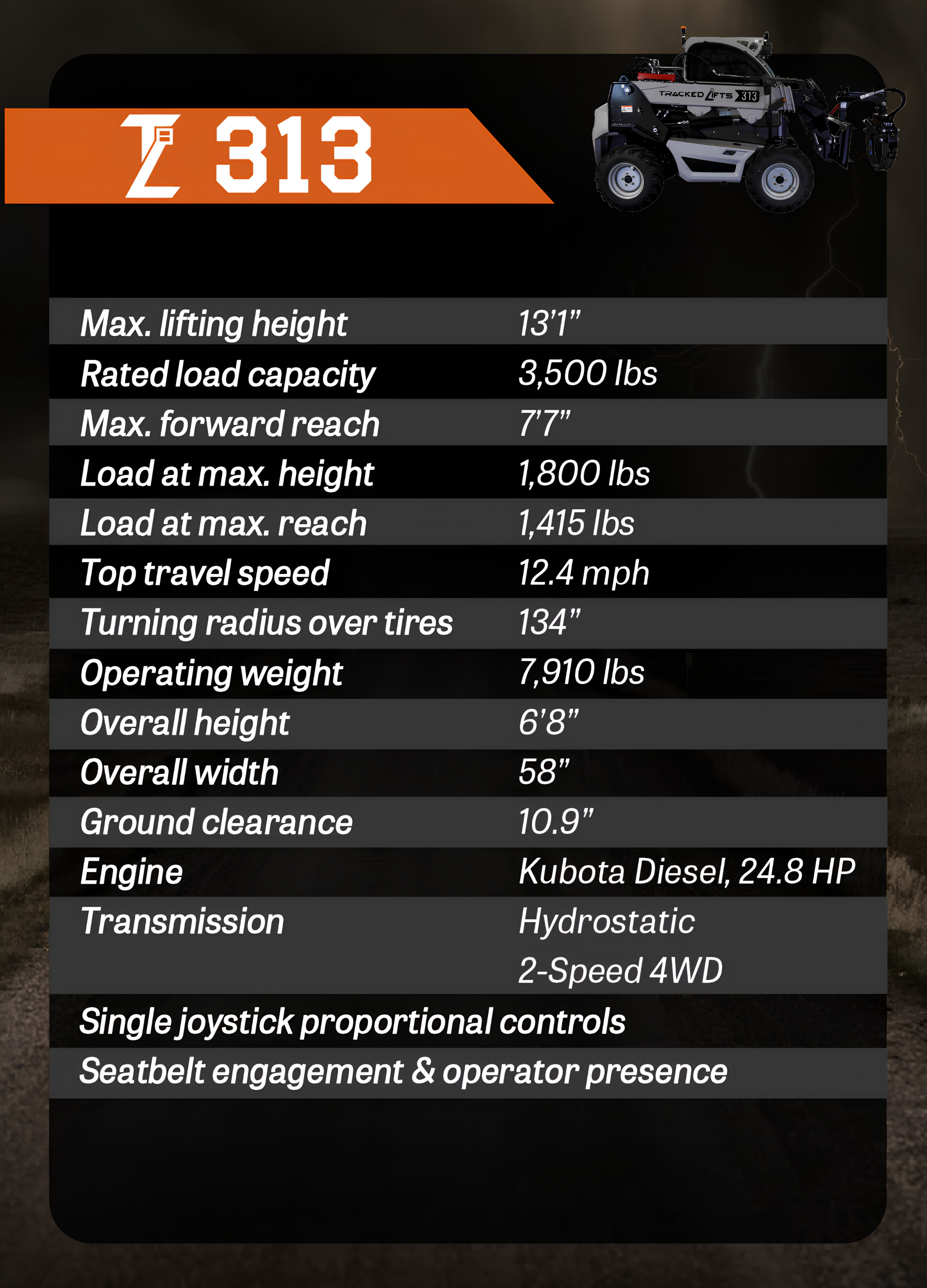

Specifications

DOWNLOAD FULL SPECS
Max. lifting height
13'1''
Rated load capacity
3,500 lbs
Max. forward reach
7'7''
Load at max. height
1,800 lbs
Load at max. reach
1,415 lbs
Top travel speed
12.4 mph
Turning radius over tires
134°
Operating weight
7,910 lbs
Overall height
6'8''
Overall width
58''
Ground clearance
10.9''
Engine
Kubota Diesel 24.8 HP
Transmission
Hydrostatic 2-Speed 4WD
Single joystick proportional controls
Seatbelt engagement & operator presence
DOWNLOAD FULL SPECS

FAQs

What is the maximum lifting height of the Tracked Lifts 313?

The 313 reaches a maximum lifting height of 13'1", making it well suited for material placement, staging, and job sites where controlled lift height is needed in a compact package.

How wide is the 313, and why does it matter?

The 313 is 58" wide overall. This compact footprint allows it to maneuver between structures, operate within confined job sites where full-size telehandlers cannot go, and still fit on our custom trailers.

What is the turning radius of the 313?

The 313 has a turning radius of 134" over tires, giving it the maneuverability to work in tight or congested site conditions.

What are the controls like on the 313?

The 313 uses a single joystick proportional control system for intuitive, precise operation. Standard safety features include seatbelt engagement and operator presence systems.

Where can I purchase the Tracked Lifts 313?

The 313 is available now through Tracked Lifts. Contact our team to discuss specs, availability, pricing, and financing options.
