Platform Basket 33.15

  • Working Height: 107'
  • Outreach: 50'
  • Width: 55"
  • Weight:15,334 lbs
Home Products Platform Basket 33.15 | Tracked Lifts

Product Overview

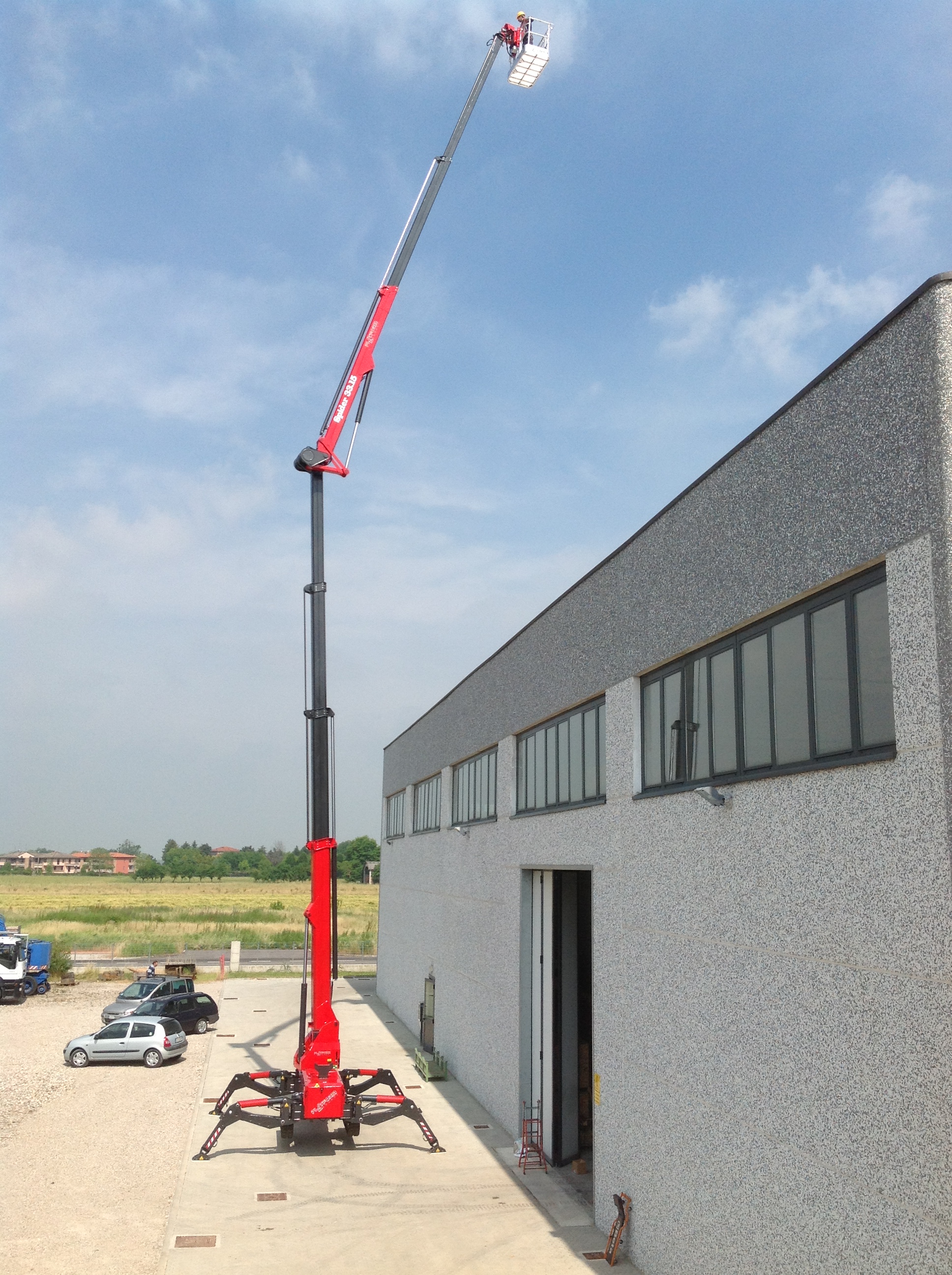

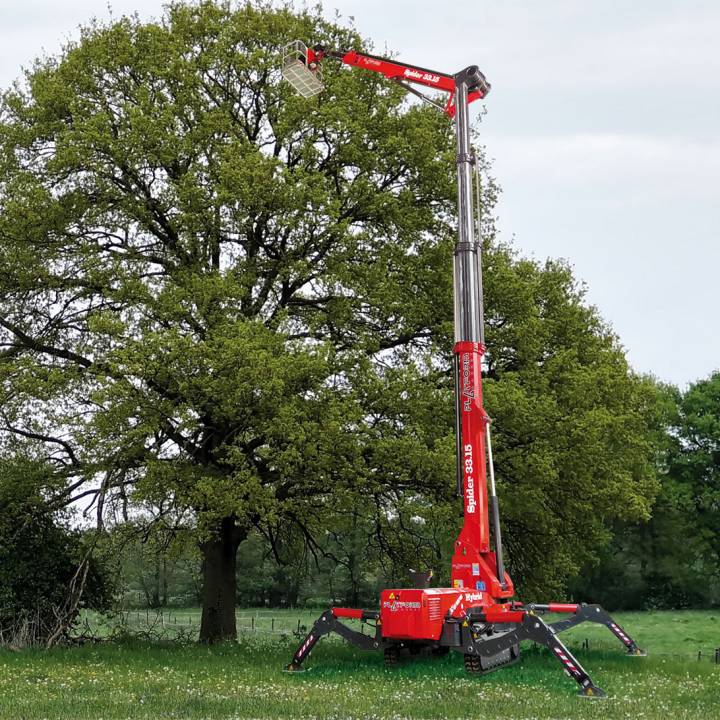

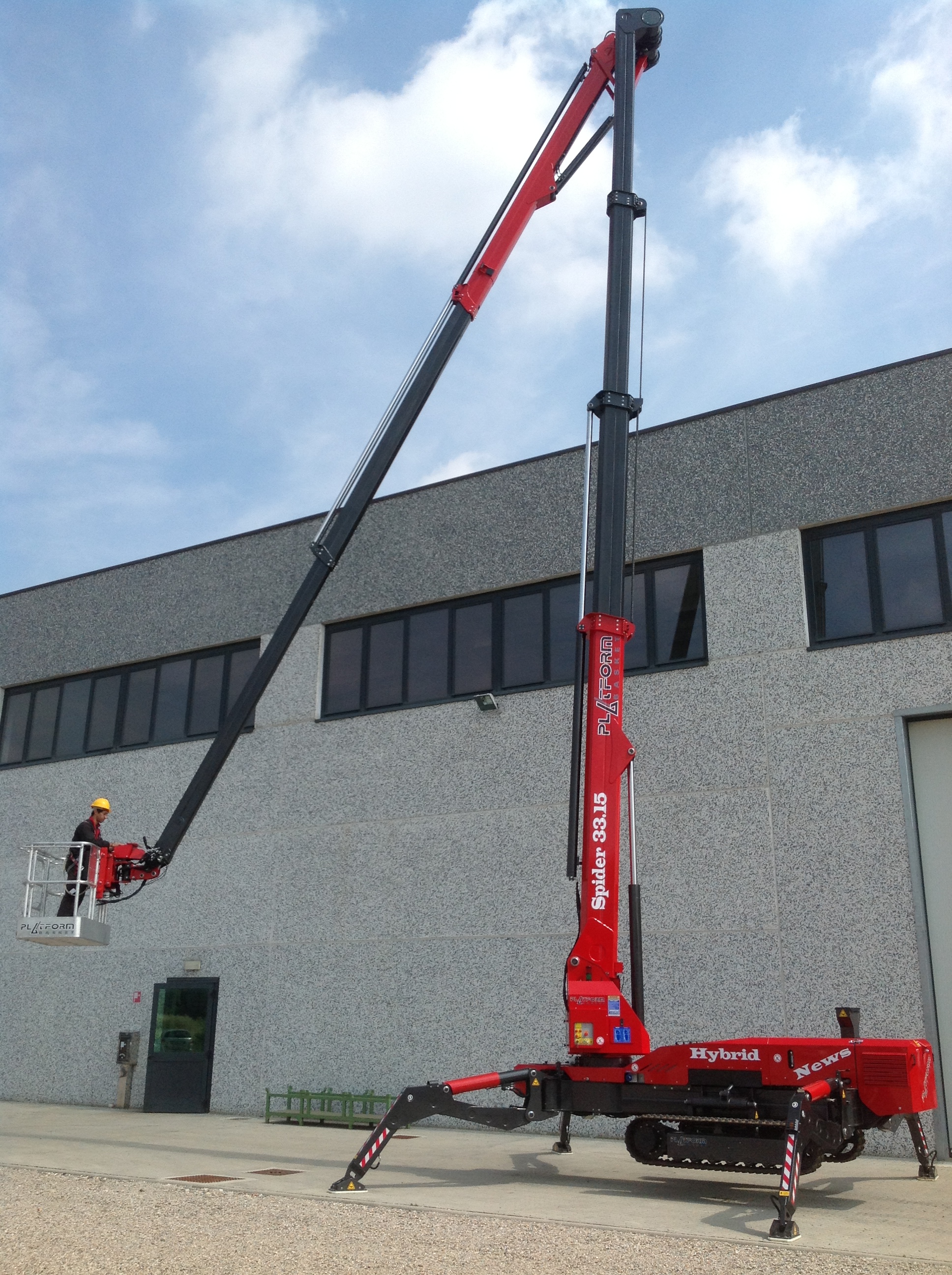

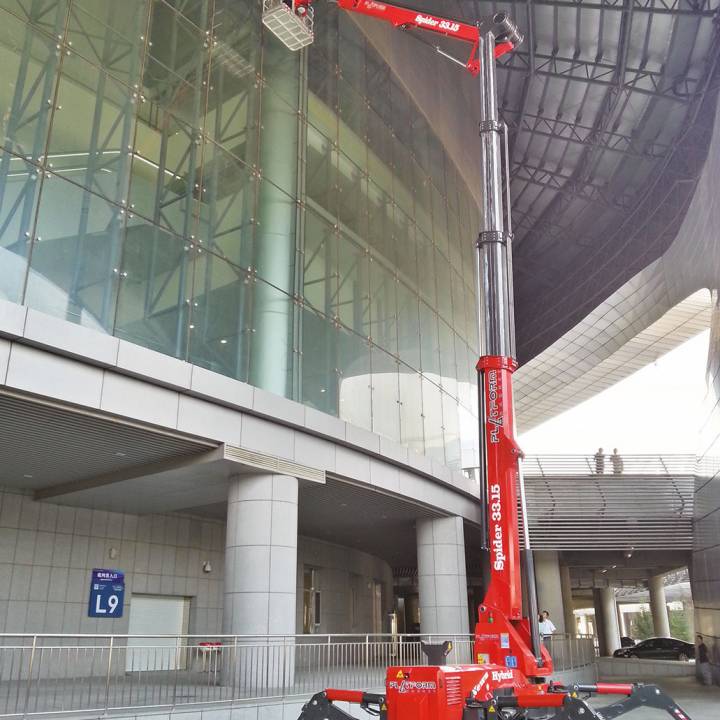

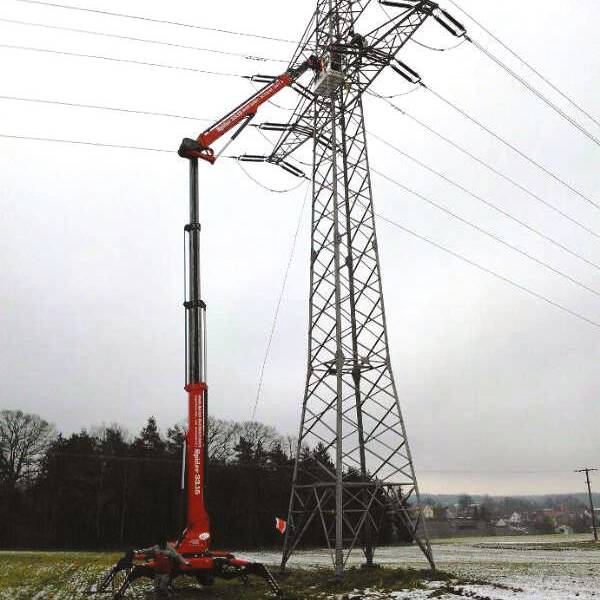

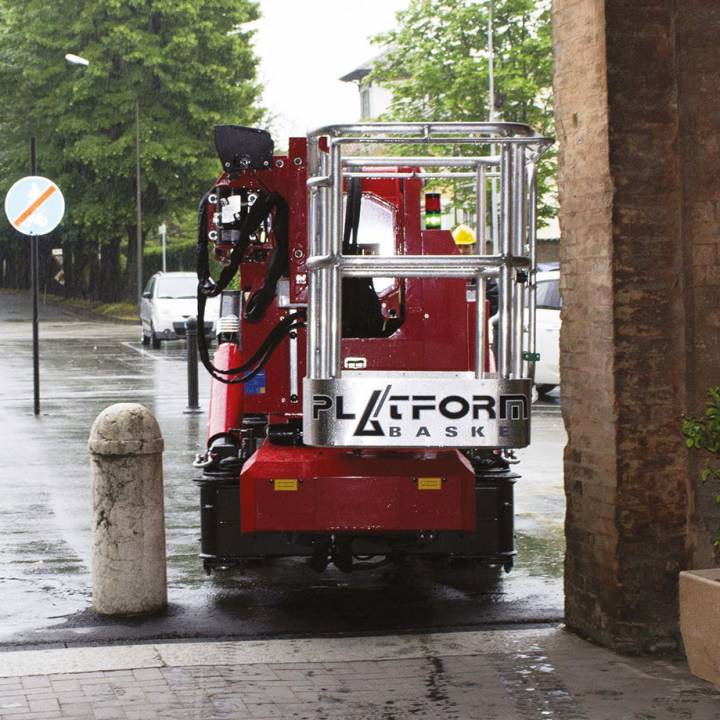

The Platform Basket Spider 33.15 is an articulated lift with telescopic booms featuring impressive ground clearance to overcome obstacles and a working diagram offering excellent performance. A self-propelled lift, it is ultra-compact and, in the stowed position, offers minimum width with the basket rotated.

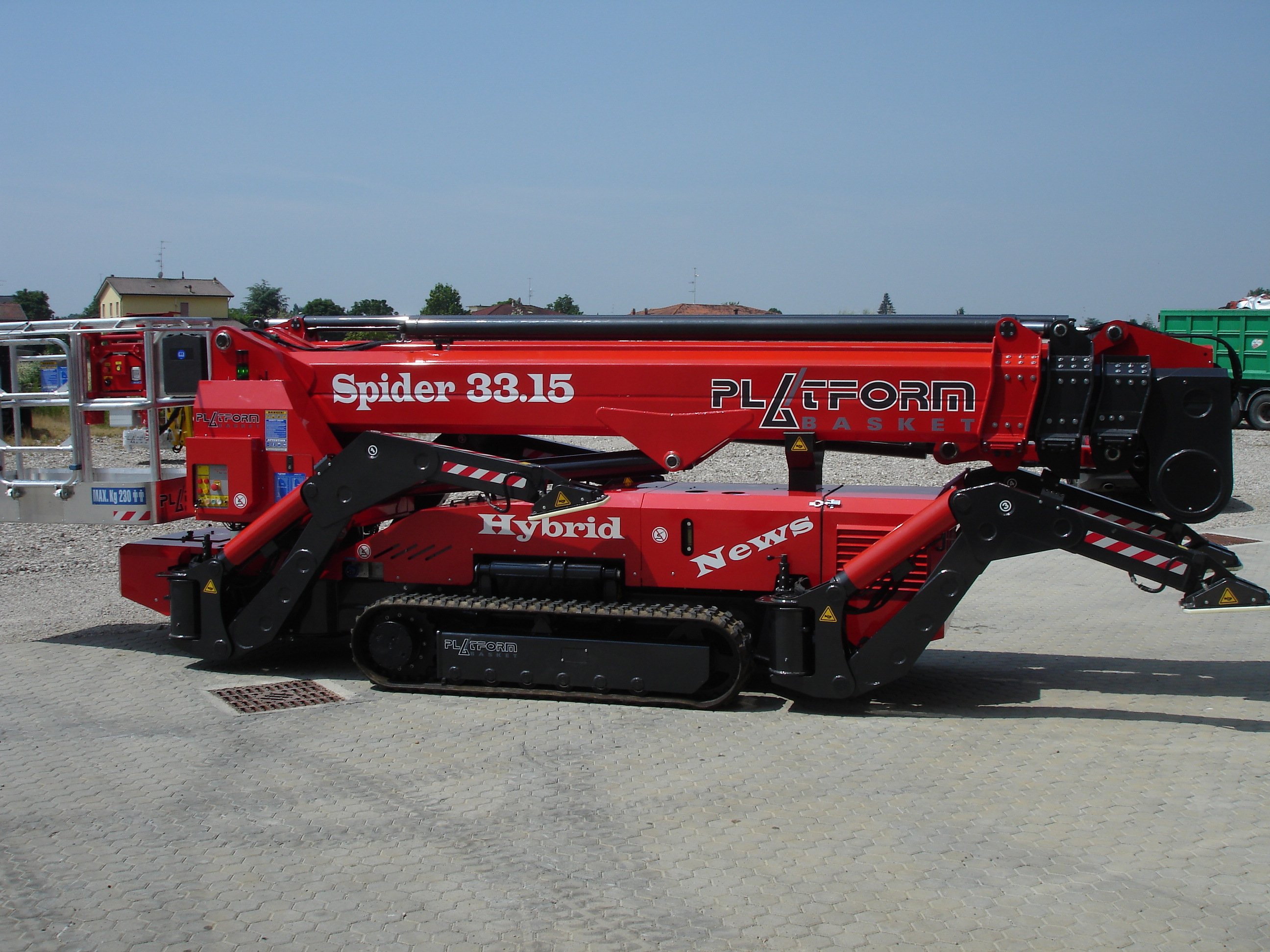

The Spider 33.15 has an extendible crawler track undercarriage with an exclusive Platform Basket system that enables enhanced mobility when in the wide position and reduced height when in the narrow position.



HubSpot Video



Features

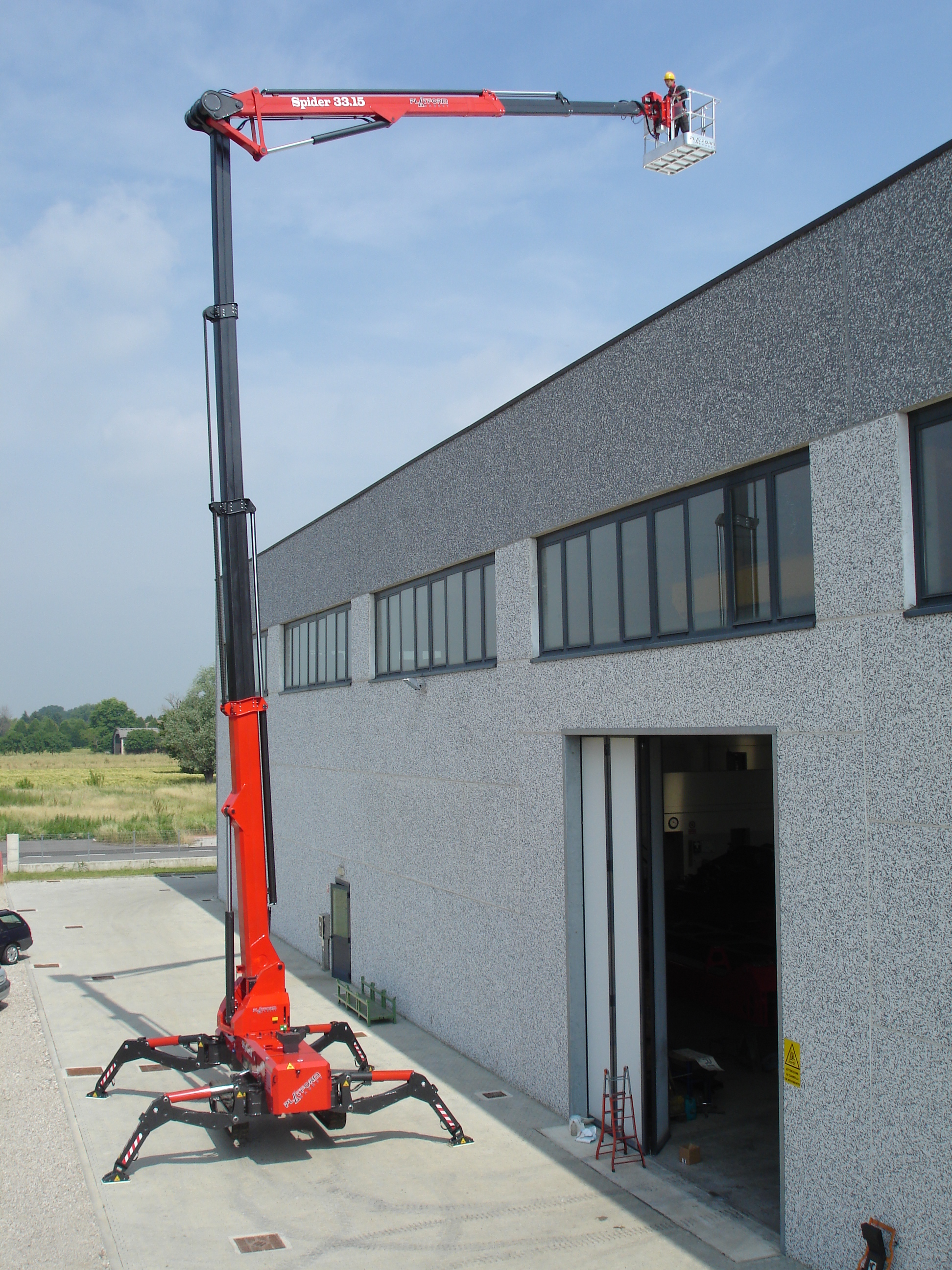

  • Overcoming obstacles at a height of 17m with lateral outreach up to 15m
  • Possibility to work up to 6m in negative through the double telescopic arm joint
  • Equipped with radio control for translation, automatic stabilization
  • Equipped with automatic reclosure in the transport gauge
  • Possible installation of large aerial nacelle (up to 2.20m)
  • Agile and stable on tracked undercarriage with variable width
  • Simple maintenance
  • Simple and intuitive on-board equipment

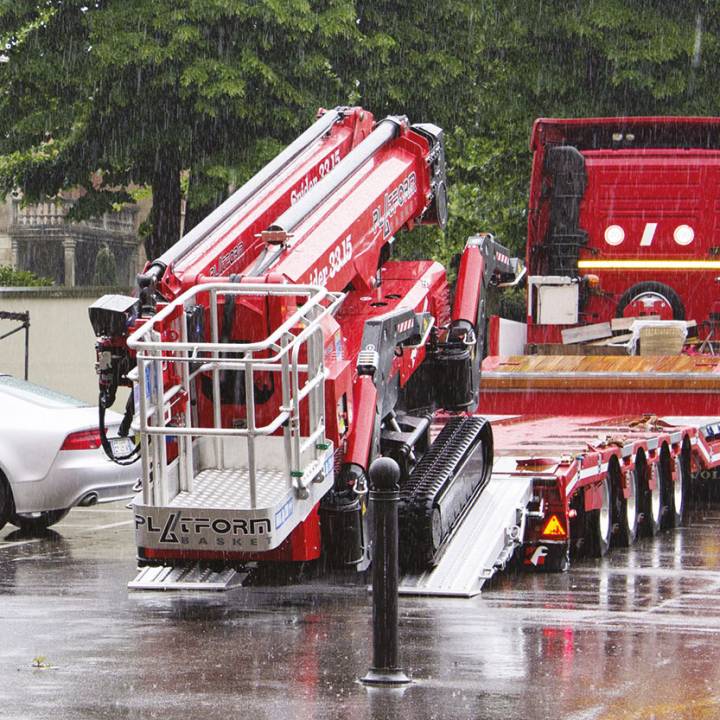

  • Super light and easy to transport
  • Air, Water, 220 V in the nacelle
  • Absence of external pipes



Specifications
Brochure
Chart
Specifications
Specifications

Max. working height
107'
Max. outreach
50' (at 300 lbs)
Max. basket load
507 lbs
Basket size
4’8” x 1’11” x 3’7” (2-man basket interior)
Basket rotation
+ / - 90°
Turret rotation
+ / - 180°
Traveling length
23’5” (21’7” without basket)
Traveling height
6’7 (narrow mode) / 7’4” (wide mode)
Traveling width
4’7” (narrow mode) / 5’6”(wide mode)
Operational width
Outrigger spread - 16’ x 17’3” wide position / 12’ x 23’2” narrow position
Battery
24V Lithium Ion Hybrid Power
Diesel engine
Kubota Diesel, 22 HP
Total weight
15,334 lbs
Gradability, max. across slope up
31% (17°)
Gradability, max. up and down slope
31% (17°)
Deployment ability on slopes up to
31% (17°)
