< ALL PRODUCTS
Platform Basket

TL 27.14

WORKING HEIGHT
89' WIDTH
35" OUTREACH
50' WEIGHT
11,500 lbs

The 27.14 - 89' Arborist is an articulated spider lift equipped with a double scissor mechanism capable of reaching heights of 89 feet! Click to see more!

REQUEST A QUOTE
DOWNLOAD SPEC SHEET

Overview

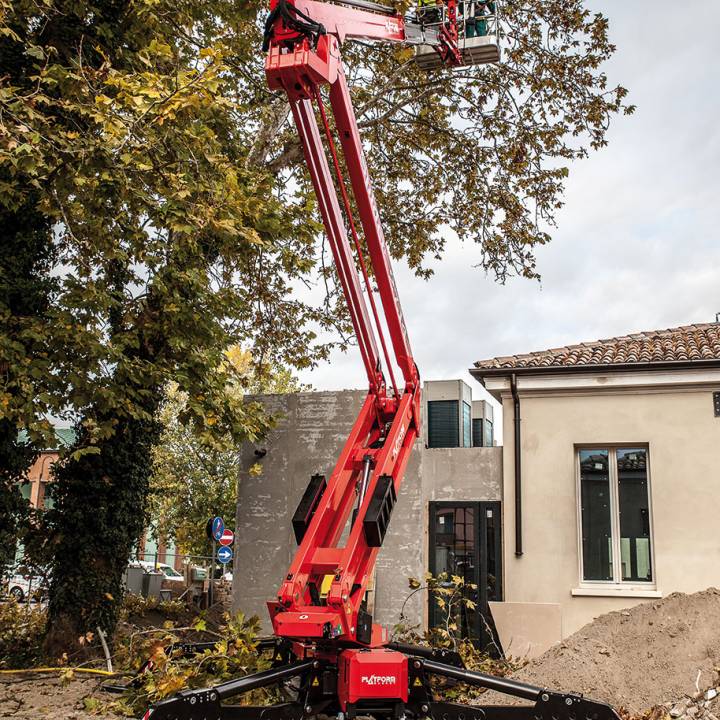

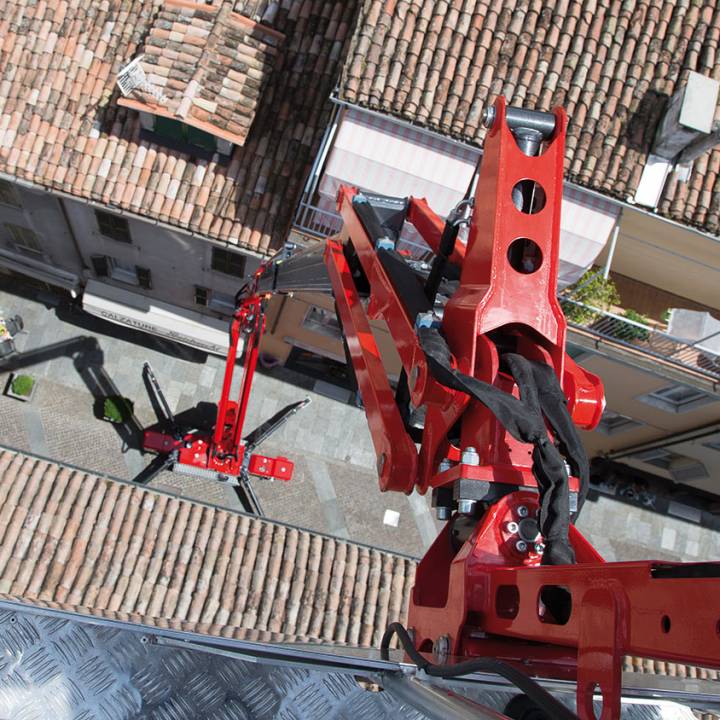

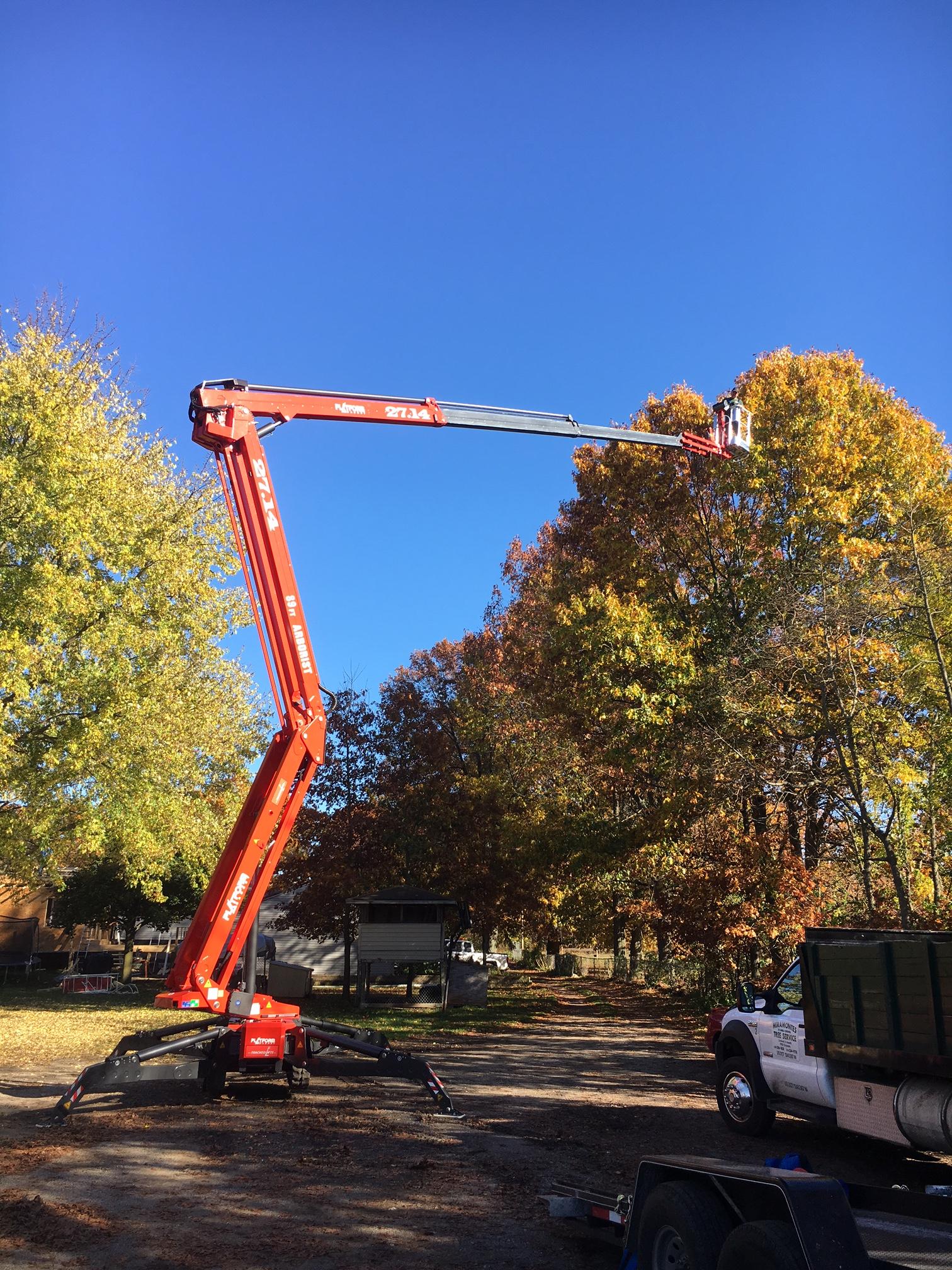

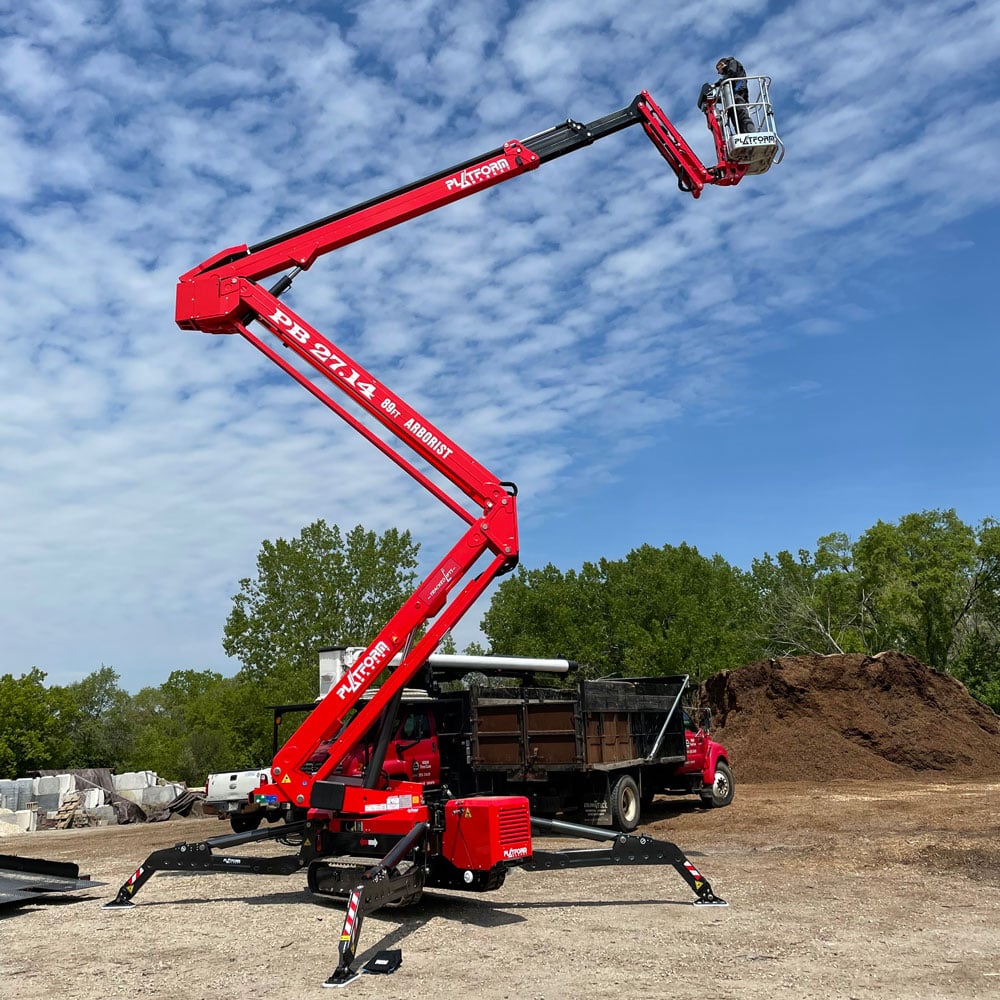

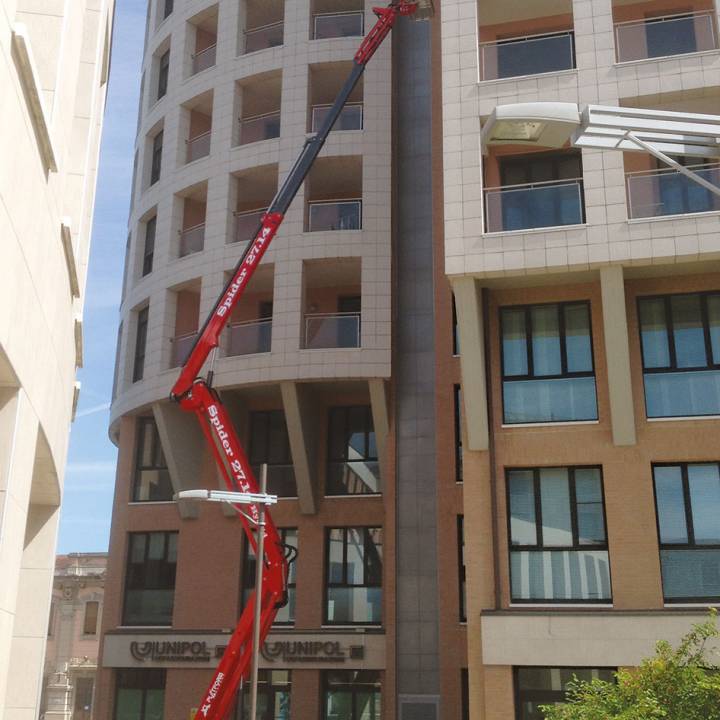

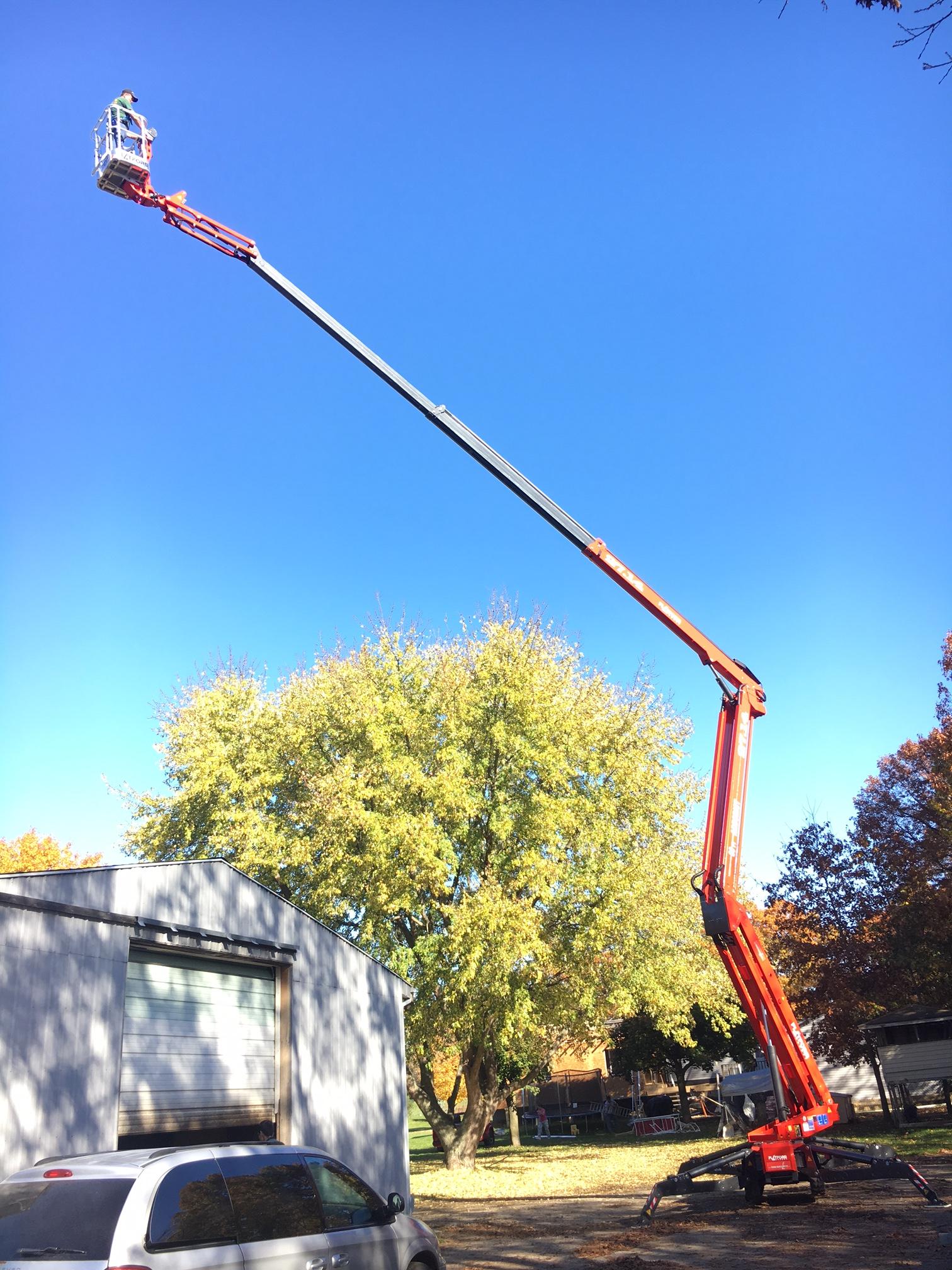

The Tracked Lift 27.14 - 89' Arborist is an articulated tracked lift equipped with double scissor mechanism, with 30 feet up-and-over clearance. Weighing just 11,500lbs, this arborist lift can reach a working height of 89 feet. With one operator working in the basket (300 lbs), the 27.14 has an outreach of up to 50 feet; with 507 lbs in the basket, the maximum outreach is 42 feet.

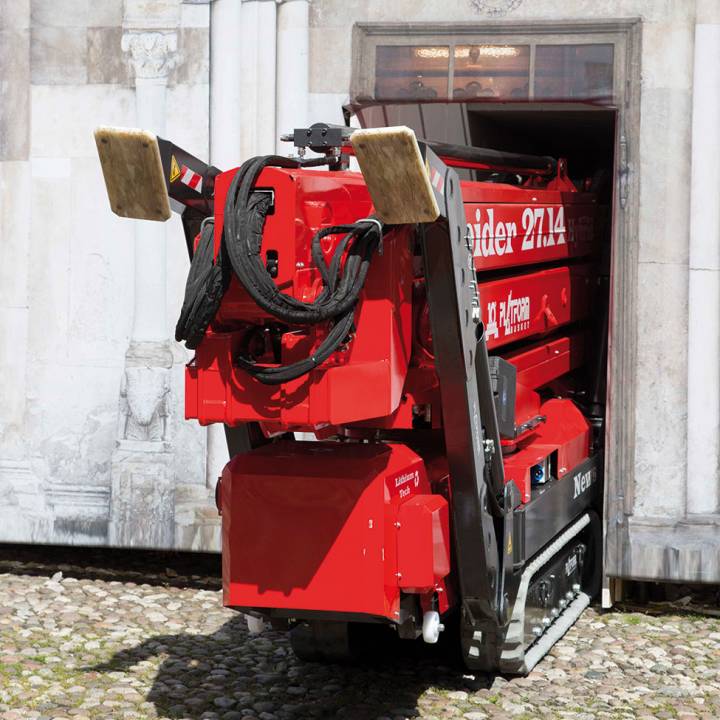

The platform is extremely compact and in the stowed position is only 35 inches wide, which means it can pass through a standard door. Stabilization is all-automatic and the side outreach is also automatically handled over the 360-degree range of motion, based on the load in the basket and the stabilization mode. The 27.14 is the platform designed to meet the market demand for compact and high-performing platforms.



REQUEST A QUOTE

Specifications

DOWNLOAD FULL SPECS
Max Working Height
Max Working Height: The highest point the platform can safely reach when fully extended.
89'
Max Outreach
Max Outreach: The maximum horizontal distance the platform can extend from the base.
50'
Max Basket Load
Max Basket Load: The total weight the platform can support, including operators and equipment.
507 lbs
Basket Size
Basket Size: The dimensions of the platform where operators stand and work.
2’7” x 2'3" (1-man basket)
Basket Rotation
Basket Rotation: The degree to which the platform can rotate to improve positioning.
+ / - 90°
Turret Rotation
Turret Rotation: The degree to which the base of the lift can turn without moving the entire machine.
360° non-continuous
Traveling Length
Traveling Length: The full length of the lift when folded for transport or storage.
20'7" (23'3" with basket)
Traveling Height
Traveling Height: The total height of the lift when fully lowered for transport.
6'6"
Operational Width
Operational Width: The full width of the lift when deployed, including any extended stabilizers.
Outrigger spread - 15’6” x 17’2” wide position / 11’5” x 21’ narrow position
Battery
Battery: The power source for electric lifts, determining runtime and charging needs.
12V Emergency Descent System
Engine
Engine: A fuel-powered engine used in some lifts for extended use and outdoor work
Kubota Diesel, 22 HP
Total Weight
Total Weight: The overall weight of the lift, important for transport and ground stability.
11,500 lbs
Gradability (Max. across slope up)
Gradability (Max. across slope up) : The steepest side-to-side slope the lift can safely move on
31% (17°)
Gradability (Max. up and down slope)
Gradability (Max. up and down slope): The maximum incline or decline the lift can travel up or down.
31% (17°)
Deployment ability on slopes up to
Deployment ability on slopes up to: The steepest slope where the lift can be safely set up and operated.
31% (17°)
DOWNLOAD FULL SPECS

Diagrams

DOWNLOAD DIAGRAMS
diagram DOWNLOAD DIAGRAMS

FAQs

The TL 27.14 reaches a maximum working height of 89 feet, making it well-suited for arborist work and other tasks requiring significant vertical reach.
The maximum outreach depends on the load in the basket. With one operator and up to 300 lbs in the basket, the platform extends up to 50 feet horizontally. With a load of up to 507 lbs, the maximum outreach is 42 feet.
The basket can support a maximum load of 507 lbs. This includes the combined weight of operators, tools, and any equipment brought into the basket.

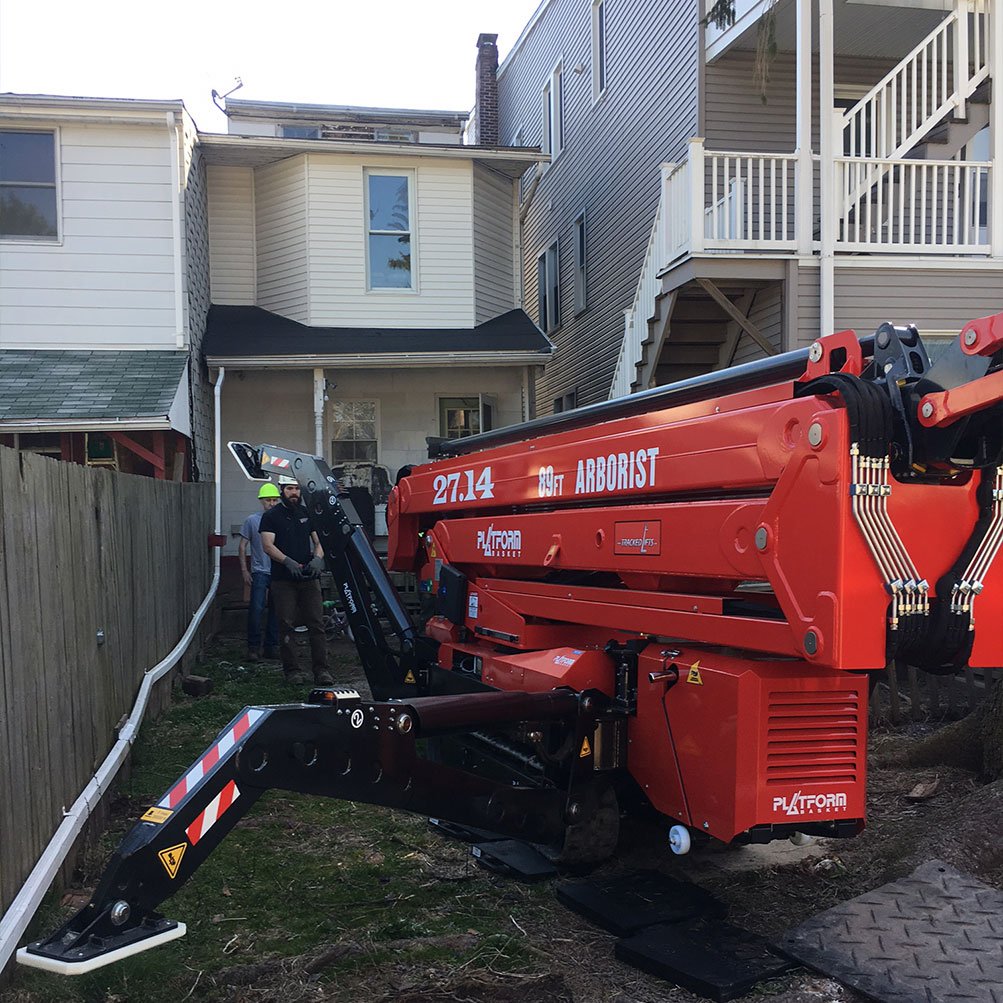

In its stowed position, the machine is only 35 inches wide — compact enough to pass through a standard door, making it easy to move through gated yards, narrow passages, and tight job sites.
Yes, the turret offers 360° of non-continuous rotation, giving operators a wide range of positioning options without needing to reposition the entire machine.
Yes. Stabilization is fully automatic, and the side outreach is automatically managed across the full 360° range of motion based on the load in the basket and the selected stabilization mode.
The lift can travel across, up, and down slopes of up to 31% (17°). It can also be safely deployed and operated on slopes up to the same grade, making it suitable for uneven terrain common on arborist and landscaping job sites.
