Overview
The Tracked Lift 13.80 is a lightweight and easy to transport spider lift, offering a 44-foot working height.
Specifications
DOWNLOAD FULL SPECS
Max Working Height
44'
Max Working Height: The highest point the platform can safely reach when fully extended.

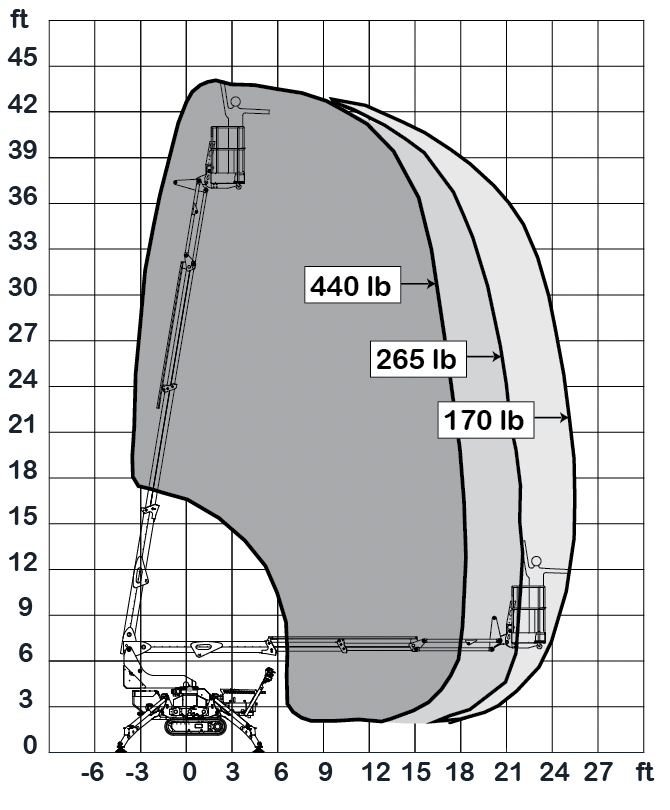

Max Outreach
25'7"
Max Outreach: The maximum horizontal distance the platform can extend from the base.
Max Basket Load
440 lbs
Max Basket Load: The total weight the platform can support, including operators and equipment.
Basket Size
4'6" x 2'3" (2-man basket)
Basket Size: The dimensions of the platform where operators stand and work.
Basket Rotation
+ / - 70° ( + / - 90° with 1-man basket)
Basket Rotation: The degree to which the platform can rotate to improve positioning.
Turret Rotation
360° non-continuous
Turret Rotation: The degree to which the base of the lift can turn without moving the entire machine.
Traveling Length
12'7" (14'5" with basket)
Traveling Length: The full length of the lift when folded for transport or storage.
Traveling Height
6'6"
Traveling Height: The total height of the lift when fully lowered for transport.
Operational Width
Outrigger spread - 8'9" x 9'
Operational Width: The full width of the lift when deployed, including any extended stabilizers.
Battery
24V Lithium Ion Hybrid Power
Battery: The power source for electric lifts, determining runtime and charging needs.
Engine
Honda Gasoline, 10 HP
Engine: A fuel-powered engine used in some lifts for extended use and outdoor work
Total Weight
3,638 lbs
Total Weight: The overall weight of the lift, important for transport and ground stability.
Gradability (Max. across slope up)
21% (12°)
Gradability (Max. across slope up) : The steepest side-to-side slope the lift can safely move on
Gradability (Max. up and down slope)
21% (12°)
Gradability (Max. up and down slope): The maximum incline or decline the lift can travel up or down.
Deployment ability on slopes up to
29% (16°)
Deployment ability on slopes up to: The steepest slope where the lift can be safely set up and operated.
