OMMELIFT 3710 RJ

Working Height: 121'4"
Outreach: 44'9"
Width: 44"
Weight:12,566 lbs

View Spec Sheet

Get a Quote

Product Overview

The Tracked Lifts OMME 3710 RJ is designed to traverse soft, muddy or hilly terrain while the crawler chassis disperses the machine's weight of approximately 12,126 lbs evenly when traveling on delicate surfaces like pavements, lawns, marble or similar.

The rapid 2-gear undercarriage is quickly in position and the boom system takes a 550lbs basket load to maximum height in less than 3 minutes. The outreach is limited through the load cell monitoring system at approximately 46'6''. A 130° fly-jib facilitates working up and over obstacles and the +/-41° basket turn enables operation in narrow and awkward places.

Up to 30% set up ability provides operation on uneven terrain where self-propelled booms are unfit to work due to steep inclines. Compact dimensions allow access into tight areas. The detachable basket provides reduced length and increased maneuverability. The 4'11'' width can be retracted hydraulically to only 3'9''.

Features

Articulating Riser
Stick Boom Advantage
Stabilizer Indicators Inform Safe Set-up
Ability to Lift the Boom and the Jib While Travelling
Flush Mounted Basket on Jib
Detachable Basket with Casters
Telescopic Sections on Rollers
Telescopic Boom Cylinder Situated Underneath Main Boom

Large and Grease Free Steel Boom Sections
Permanently Fixed, Large Bearing-Area Stabilizer Foot Plates
Slide Hinged with Purpose Designed Anti-Scratch Boards
Robustly Built
Extensively Shielded
Power Outlet in Basket
Hatch for easy cleaning

Specifications

Brochure

Chart

Specifications

Specifications

Max. working height

121'4"

Max. outreach

44'9" (at 176lbs)

Max. basket load

550 lbs

Basket size

2’8” x 2’6” x 3’7” (1-man basket interior)

Basket rotation

+ / - 41°

Turret rotation

+ / - 355°

Traveling length

26'7" (24'6" without basket)

Traveling height

6'6"

Traveling width

3’8” (narrow mode) / 4’11” (wide mode)

Operational width

Outrigger spread - 17’5” X 17’5” wide position / 21’10” x 10’6” narrow position

Battery

24V 400 Ah/5h

Charger

24V / 25A

Diesel engine

14kW / 18.8HP

Generator

24V / 22A

Total weight

12,566 lbs

Gradability, max. across slope up

35% (19.3°)

Gradability, max. up and down slope

35% (19.3°)

Deployment ability on slopes up to

30% (16.7°)

Power Pack

True Hybrid System Battery / Diesel Power

Brochure

Download the Brochure

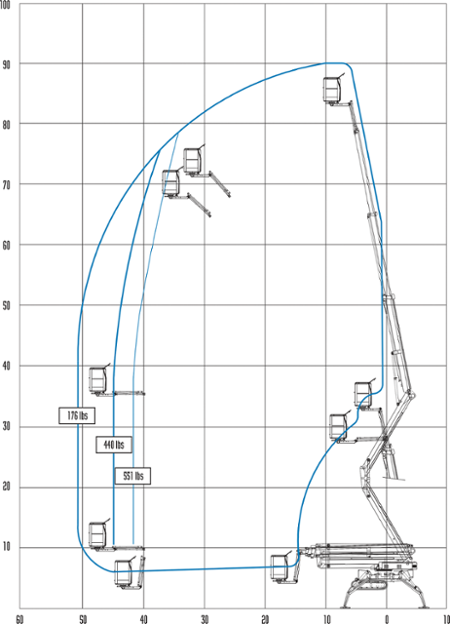

Chart
