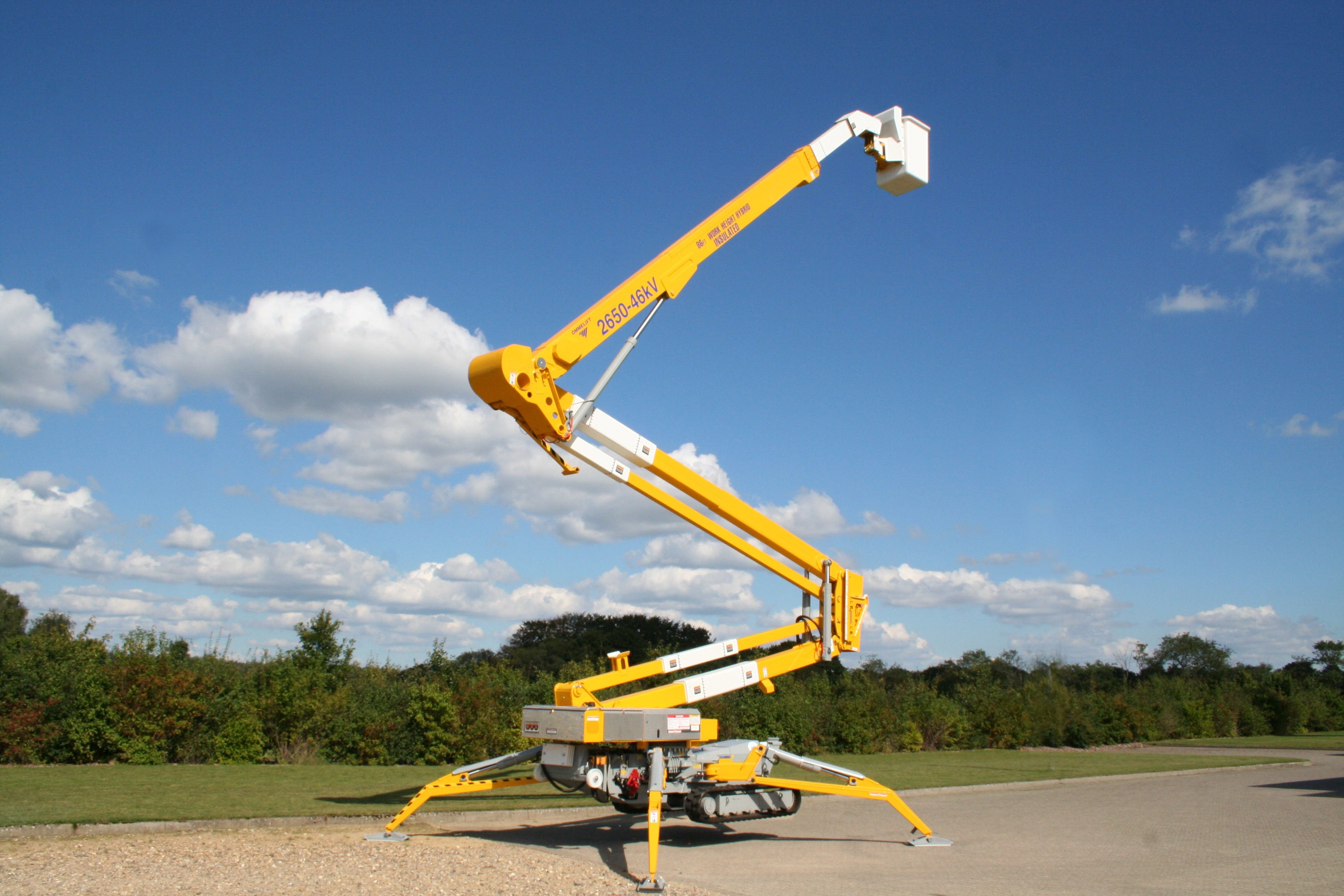

    OMMELIFT 2650 46kV

    • Working Height: 86'
    • Outreach: 40'1"
    • Width: 44"
    • Weight:13,400 lbs
    Home Products OMMELIFT 2650 46kV | Tracked Lifts

    Product Overview

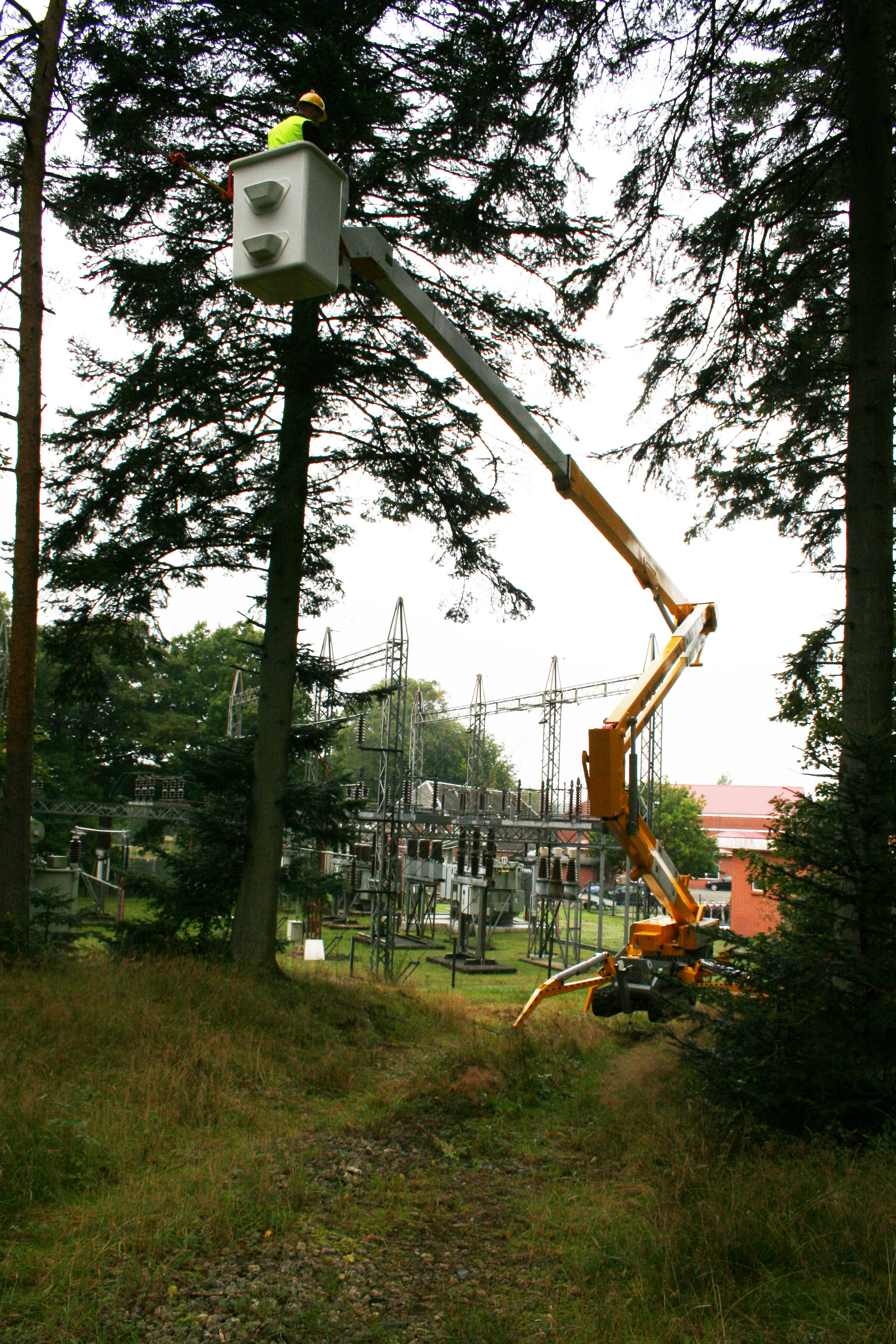

    The Tracked Lifts OMME 2650 46kV is ANSI A92.2 compliant and is specifically designed and built to meet the needs of professionals in the tree work business, who has to work safely in close proximity to power lines. All booms are insulated with Waco fiberglass sections which enable safe and maneuverable work.

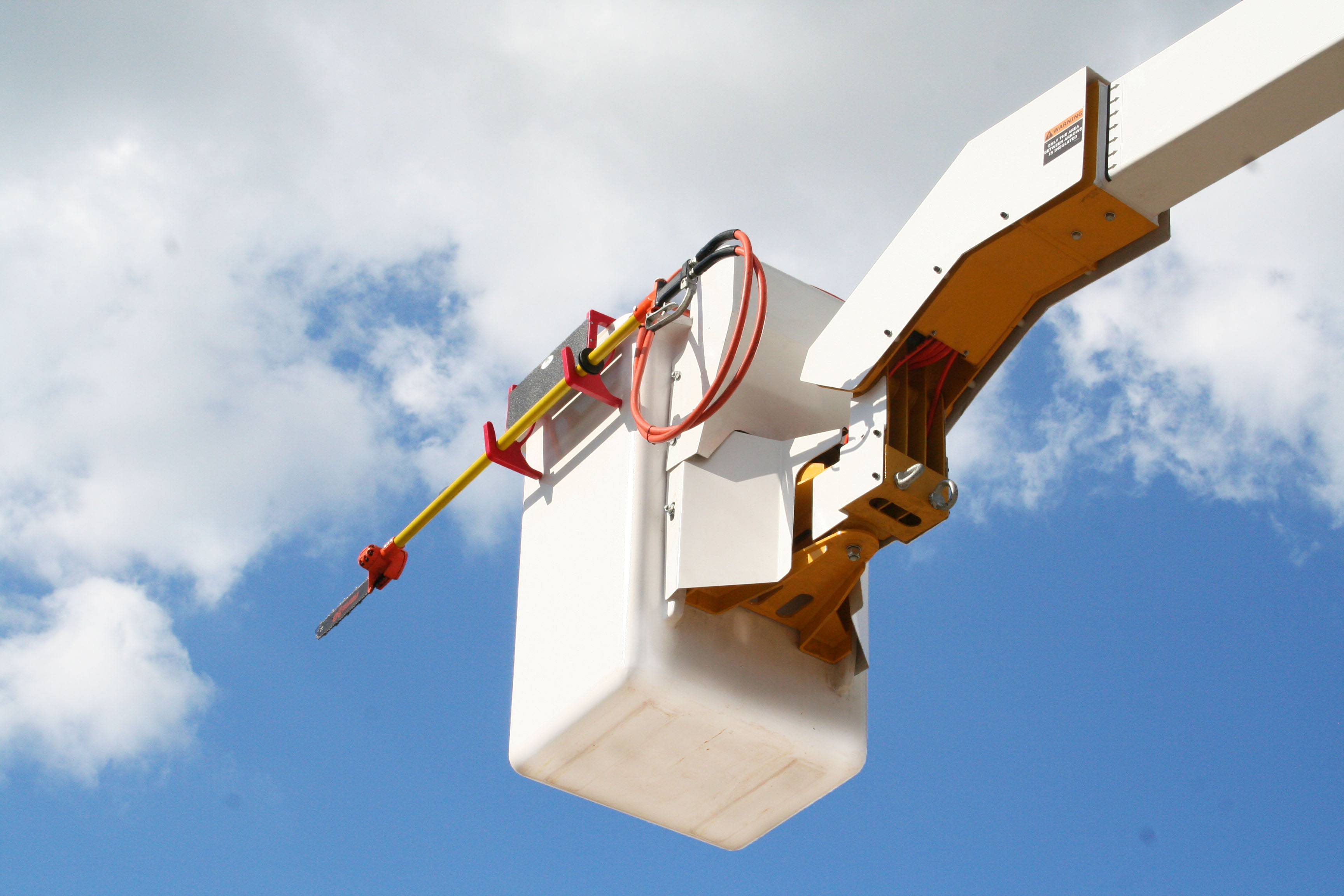

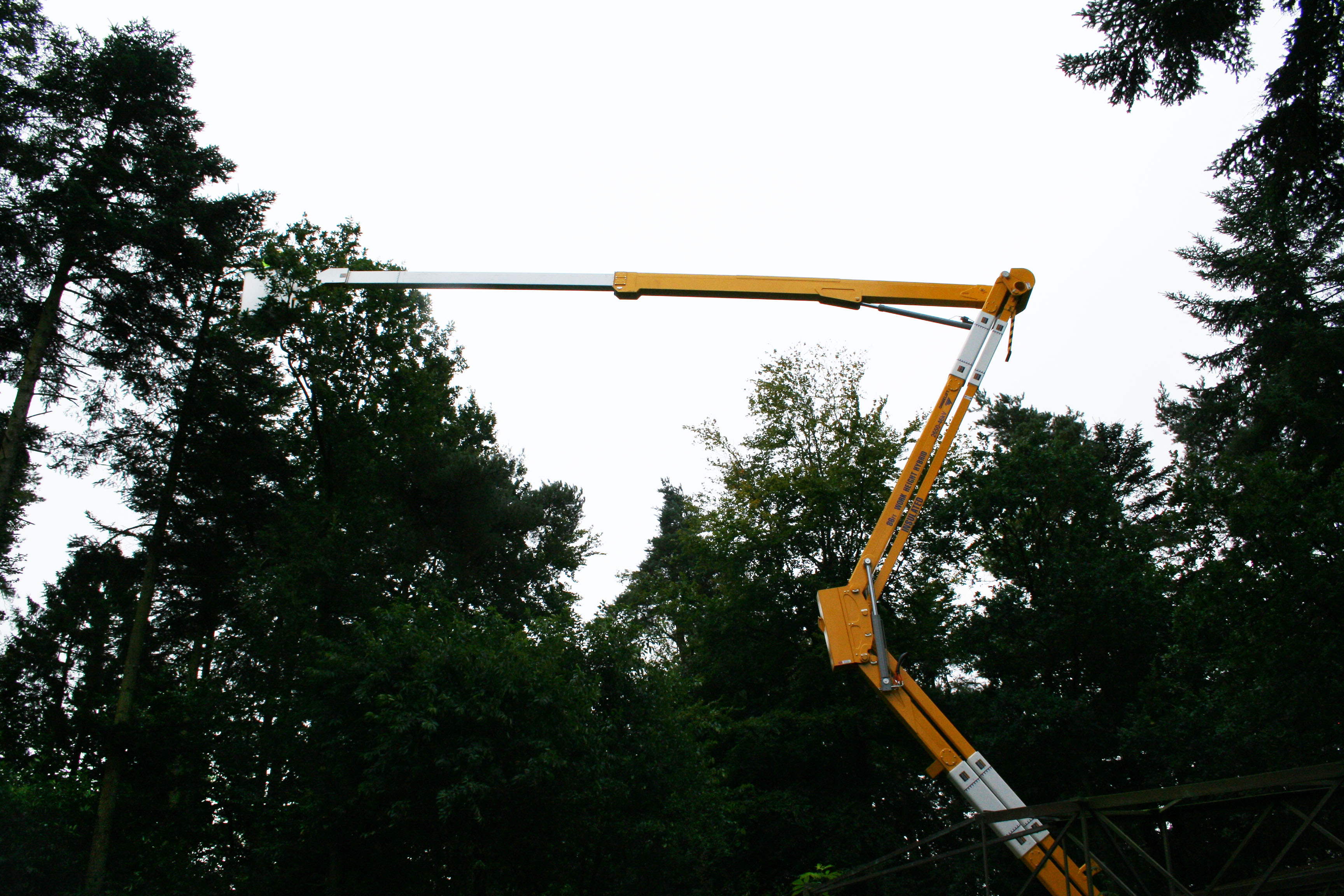

    This insulated tracked lift has a working height of 86’ and an unrestricted outreach of 40’1”. A dual parallelogram articulating riser gives 42'7” up-and-over free clearance and provides vertical wall tracking. With the telescopic sections on rollers, there is no slide pad friction in telescopic movements, which ensures the same operation speed with full basket load in all positions. In addition, the basket rotates 180°giving greater access during jobs.

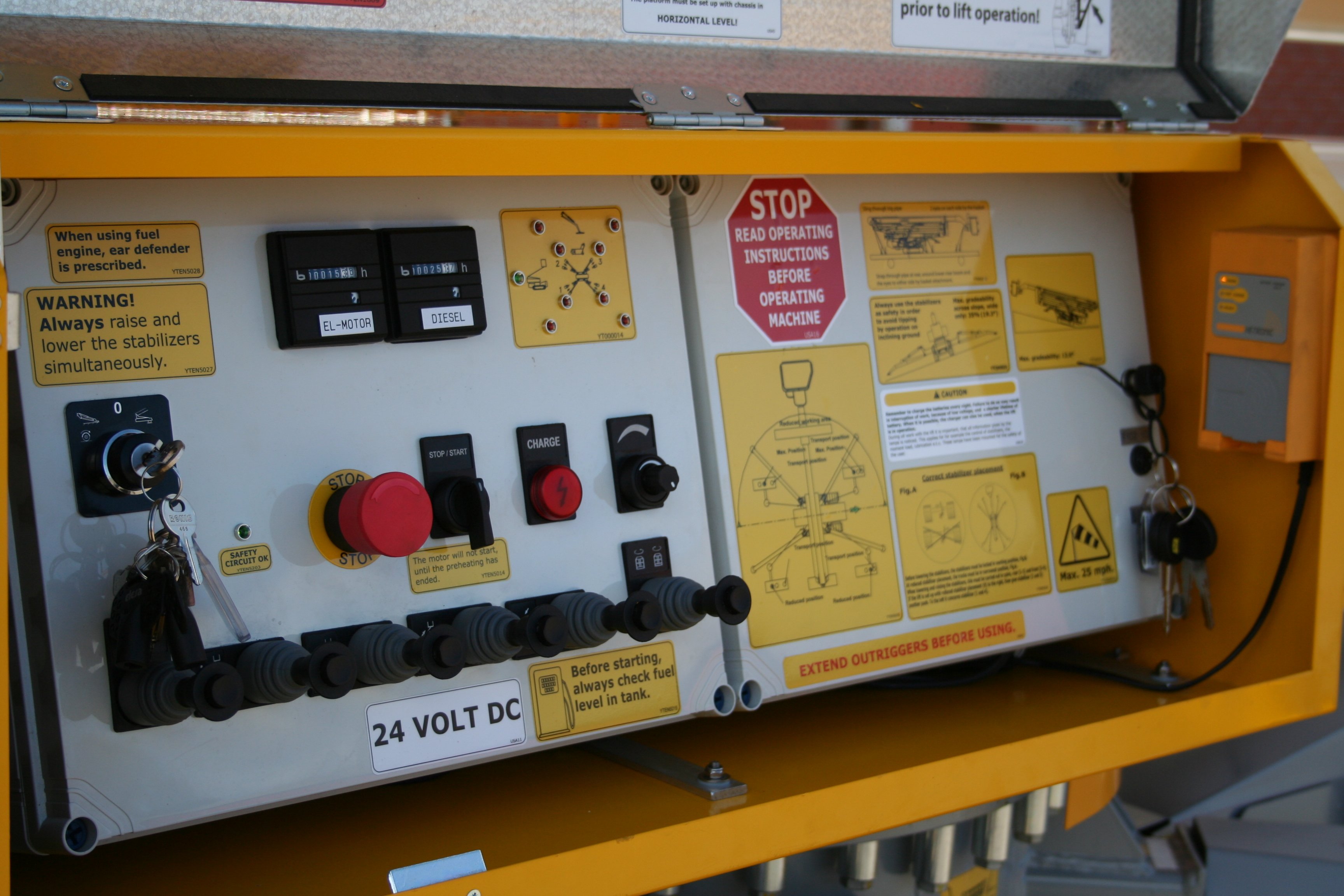

    The OMME 2650 46kV standard version is a true diesel/battery hybrid with engine-generated re-charge of the battery pack. Battery power means no noise and no fumes. This lift has powerful off-road driving capability and a heavy-duty shield package. The stabilizers allow the machine to be set up on uneven levels up to 40% (21.8°). Simple and intuitive, the multi-function lift operation from the radio controller makes operator instruction easy and allows them to work quicker.



    Features

    • True Hybrid System Battery/Diesel Power
    • ANSI/SAIA A92.2 Compliant
    • Stabilizer Indicators Inform Safe Set-up
    • 3 Boom Insulated Areas
    • Powerful Off-Road Driving Capability
    • Low Ground Pressure Minimal Turf Impact
    • Variable Width Undercarriage
    • Variable Outrigger Positions
    • Permanently Fixed, Large Bearing-Area Stabilizer Foot Plates
    • Easy Basket Access
    • 180° Basket Rotation
    • Hydraulic Circuit for Saw Hookup
    • Extensive Horizontal Reach
    • Robustly Built
    • Heavy Duty Shield Package
    Specifications
    Brochure
    Chart
    Specifications
    Specifications

    Max. working height
    86'
    Max. outreach
    40'1"
    Max. basket load
    300 lbs
    Basket size
    2’5” x 1’11” x 3’5” (1-man bucket interior)
    Basket rotation
    + / - 90°
    Turret rotation
    + / - 355°
    Traveling length
    33'7"
    Traveling height
    7'11"
    Traveling width
    3’8” (narrow mode) / 4’11” (wide mode)
    Operational width
    Outrigger spread - 17’5” x 17’5” wide position / 21’10” x 10’7” narrow position
    Battery
    24V 200 Ah/5h
    Charger
    24V / 25A
    Diesel engine
    18.5kW / 24.8HP
    Generator
    24V / 22A
    Total weight
    13,400 lbs
    Gradability, max. across slope up
    35% (19.3°)
    Gradability, max. up and down slope
    35% (19.3°)
    Deployment ability on slopes up to
    40% (21.8°)
    Power Pack
    True Hybrid System Battery / Diesel Power
